若依面包屑导航保存表单数据

解决的问题

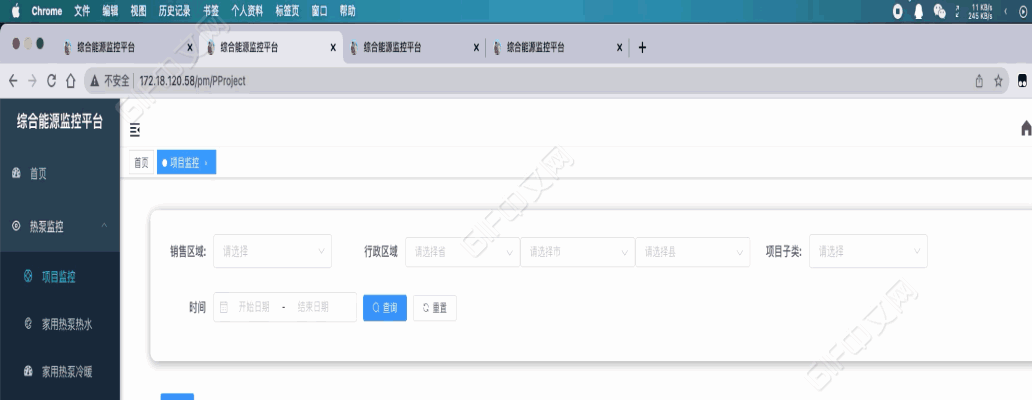

bff5d33e-b4aa-4bb5-85aa-b378c5367f28

面包屑并不是类似操作系统的多窗口, 仅仅是把页面的路由数据存起来, 作为一个标签展示在页面上, 直接切换的话还是会重新进入对应的页面, 这就会导致本来在页面上输入的数据切换标签页后会被清空

解决方案

利用Vuex将页面上的数据进行存储,只要浏览器标签页不被关闭或刷新,Vuex的数据就会一直存在,所以:

1. 从标签页1跳转到标签页2之前(组件路由守卫`beforeRouteLeave`),将标签页1中的数据存放到`Vuex`
1. 标签页2(或其他标签页)跳转到标签页1时(组件路由守卫`beforeRouteEnter`),从`Vuex`中读取存放的数据,如果有就赋值给`data`中对应的数据

默认都是使用了若依的Vue-Router, 封装好了导航守卫

代码实现

<!-- Tag Page 1 -->
<template>...</template>
<script>
export default {
  data() {
    return {
      ...,
      // queryParams是用户输入的一些信息
      queryParams: {
      	type: '',
      	...
      }
    }
  },
  /**
   * 路由跳转到这一页之前会触发下面的方法
   *
   * @param to		当前页的route对象
   * @param from	上一页的route对象
   * @param next
   */
  beforeRouteEnter(to, from, next) {
  	// 这里的vm指当前页的(也就是to所指向的页面)Vue实例(this)
  	// 因为触发此路由守卫时该页面还未被创建,所以需要由next中的方法去触发
  	// 具体参考 完整的导航解析流程
    next(vm => {
      // 这里的params对应下面beforeRouteLeave中的params,根据需求自定义格式
      let params = vm.$store.state.tagsView.viewsParams[to.fullPath];
      if (params && params.queryParams) vm.queryParams = params.queryParams
    })
  },
  /**
   * 此页面路由跳转到其他页面之前会触发下面的方法
   *
   * @param to		下一页的route对象
   * @param from	当前页的route对象
   * @param next
   */
  beforeRouteLeave(to, from, next) {
    // 将数据存到Vuex中
    // params可以根据自己的需求更改内容,只要和beforeRouteEnter中赋值的方法对应上即可
    this.$store.dispatch("tagsView/addViewParams", {
      view: from,
      params: {
        queryParams: this.queryParams
      }
    });
    // 触发跳转
    next()
  }
}
</script>

// /src/store/modules/tagsView.js

const state = {
  visitedViews: [],
  cachedViews: [],
  //用来保存页面的一些数据，方便面包屑切换时保留数据
  viewsParams: {}
}

const mutations = {
  ADD_VISITED_VIEW: (state, view) => {...},
  ADD_CACHED_VIEW: (state, view) => {...},
  // 使用页面route对象的fullPath作为索引,防止重复
  ADD_VIEWS_PARAMS: (state, {view, params}) => {
    state.viewsParams[view.fullPath] = params
  },

  DEL_VISITED_VIEW: (state, view) => {...},
  DEL_CACHED_VIEW: (state, view) => {...},
  DEL_VIEWS_PARAMS: (state, view) => {
    delete state.viewsParams[view.fullPath]
  },

  DEL_OTHERS_VISITED_VIEWS: (state, view) => {...},
  DEL_OTHERS_CACHED_VIEWS: (state, view) => {...},
  DEL_OTHERS_VIEWS_PARAMS: (state, view) => {
    let tempParams = state.viewsParams[view.fullPath]

    state.viewsParams = {}

    state.viewsParams[view.fullPath] = tempParams
  },

  DEL_ALL_VISITED_VIEWS: state => {...},
  DEL_ALL_CACHED_VIEWS: state => {...},
  DEL_ALL_VIEWS_PARAMS: state => {
    state.viewsParams = {}
  },

  UPDATE_VISITED_VIEW: (state, view) => {...},

  DEL_RIGHT_VIEWS: (state, view) => {
    ...
      if (i > -1) {
        state.cachedViews.splice(i, 1)
        delete state.viewsParams[item.fullPath]
      }
    ...
  },

  DEL_LEFT_VIEWS: (state, view) => {
    ...
      if (i > -1) {
        state.cachedViews.splice(i, 1)
        delete state.viewsParams[item.fullPath]
      }
    ...
}

const actions = {
  addView({dispatch}, view) {...},
  addVisitedView({commit}, view) {...},
  addCachedView({commit}, view) {...},
  addViewParams({commit}, data) {
    commit("ADD_VIEWS_PARAMS", data)
  },

  delView({dispatch, state}, view) {
    return new Promise(resolve => {
      dispatch('delVisitedView', view)
      dispatch('delCachedView', view)
      dispatch('delViewParams', view)
      // dispatch('delView')
      resolve({
        visitedViews: [...state.visitedViews],
        cachedViews: [...state.cachedViews],
        viewsParams: {...state.viewsParams}
      })
    })
  },
  delVisitedView({commit, state}, view) {...},
  delCachedView({commit, state}, view) {...},
  delViewParams({commit, state}, view) {
    return new Promise(resolve => {
      commit('DEL_VIEWS_PARAMS',view)
      resolve({...state.viewsParams})
    })
  },

  delOthersViews({dispatch, state}, view) {
    return new Promise(resolve => {
      dispatch('delOthersVisitedViews', view)
      dispatch('delOthersCachedViews', view)
      dispatch('delOthersViewsParams', view)
      resolve({
        visitedViews: [...state.visitedViews],
        cachedViews: [...state.cachedViews],
        viewsParams: {...state.viewsParams}
      })
    })
  },
  delOthersVisitedViews({commit, state}, view) {...},
  delOthersCachedViews({commit, state}, view) {...},
  delOthersViewsParams({commit, state}, view) {
    return new Promise(resolve => {
      commit('DEL_OTHERS_VIEWS_PARAMS', view)
      resolve({...state.viewsParams})
    })
  },

  delAllViews({dispatch, state}, view) {
    return new Promise(resolve => {
      dispatch('delAllVisitedViews', view)
      dispatch('delAllCachedViews', view)
      dispatch('delAllViewsParams')
      resolve({
        visitedViews: [...state.visitedViews],
        cachedViews: [...state.cachedViews],
        viewsParams: {...state.visitedViews}
      })
    })
  },
  delAllVisitedViews({commit, state}) {...},
  delAllCachedViews({commit, state}) {...},
  delAllViewsParams({commit, state}) {
    return new Promise(resolve => {
      commit('DEL_ALL_VIEWS_PARAMS')
      resolve({...state.viewsParams})
    })
  },

  updateVisitedView({commit}, view) {...},

  delRightTags({commit}, view) {...},

  delLeftTags({commit}, view) {...}
}

export default {
  ...
}

修改好tagView,js后,就可以将需要存放的数据放到viewsParams中

使用时的viewsParams

这样只需要在对应的页面中加入beforeRouterEnter和beforeRouterLeave方法即可

其他问题

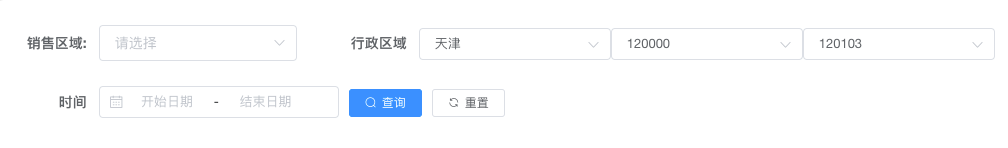

下拉框显示错误

image-20220623143139118

原因: 主要是因为下拉框的绑定的数组也是从后台请求到的数据, 路由跳转后赋值只会使下拉框绑定的值有值,而下拉选项的数组还是空的

解决: 可以在给参数赋值之前调用methods中对应的方法请求下拉选项对应的数组

...
 beforeRouteEnter(to, from, next) {
    next(vm => {
      let params = vm.$store.state.tagsView.viewsParams[to.fullPath];
      if (params && params.queryParams) {
        // 如果保存的数据中存在省的数据,就调用methods中的getCityListByProvinceid获取市下拉列表的数据
        if (params.queryParams.province) vm.getCityListByProvinceid(params.queryParams.province)
        // 如果保存的数据中存在市的数据,就调用methods中的getTownListByCityid获取县下拉列表的数据
        if (params.queryParams.city) vm.getTownListByCityid(params.queryParams.city)
        vm.queryParams = params.queryParams
      }
    })
  },
...

参考

1. 完整的导航解析流程
